200kg大桶灌裝線適用于潤滑油、基礎油，以及中間體化工產品的原料、助劑的包裝。大桶能自動進桶，自動對位稱重灌裝，手工放蓋，自動旋蓋，自動供械，自動碼垛的大桶包裝流水線。它產能穩定，操作簡單，生產能力高，是大、中原藥、中間體企業大桶包裝的理想設備。

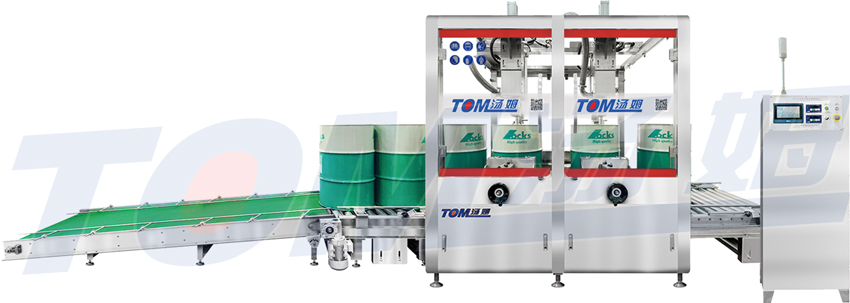

DGP-CZ-300R大桶灌裝線適用于潤滑油類、防凍液、液蠟、清潔劑和部分添加劑的包裝。大桶能自動進桶，自動對位稱重灌裝的大桶包裝流水線。它產能穩定，操作簡單，生產能力強，是大、中石化企業大桶包裝的理想設備。
It is suitable for lubricant,antifreeze,liquid wax,detergent,cream and additive filling. It can finish a series of operations automatically, including entering barrels, filling. It is characterized by its stability, conwenienle of operation and high production capacity. It is the ideal equipment for medium and large enterprises of petrochemical.
主要特點
本機專門針對100-300kg 的液體桶包裝而設計，整條線自動完成進桶、自動識別桶口、自動對準桶口、自動下潛灌裝、隨著灌裝量的增加下料嘴慢慢的上升、防止泡沫的產生，灌裝結束自動出桶后手工放蓋在桶口，通過氣動旋蓋頭旋緊，整個流程結束后通過叉車或者人工轉運。本機采用可編程控制器（PLC）進行控制，觸摸屏操作，具有操作方便，生產效率高，適用范圍廣等特點；本機電器控制部分則由PLC可編程電腦程序控制器，變頻調速器等組成，控制能力強，自動化程度高，采用特殊裝置，無桶不灌裝，對不準桶口不灌裝等功能，避免了物料的浪費和污染，使機器的機電一體化得到了完美的表現。
This machine is designed for liquid barrel packaging of 100-300kg . The host machine adopts stainless steel frame and tempered glass door . It is completely sealed during the process of filling and packing . The air outlet on the top can control the distribution of smell . The whole line can finish a series of operations automatically ,such as barrel inlet ,barrel recognition, adjustment calibration , submersible filling and so on . After the filling , an operator must put a cap on the barrel manually. Then the Pneumatic Screw LIDS will tighten the cap automatically . This machine is controlled by PLC and touch screen . It is characterized by convenient operation ,high efficiency and wide range of application . Electric control part consists of PLC and VVVF . It has strong control ability and high automation degree . It utilizes special devices which ensure “ no barrel ,no filling “ and “ no filling without fine calibration “. As a result ,there is no waste of material and pollution that displays the perfect mechatronics .
主要技術參數
1、主機外形尺寸約（長*寬*高）：2000*2300*3000mm13、物料接口：標準法蘭，物料進口壓力小于0.3MPa
1、Host dimension ( length *width*height) :2000mm*2300mm*3000mm
2、Container into the mouth diameter : ≥ 50mm(can be customized according to the barrel mouth)
3、Vessel diameter :Φ500mm - Φ700mm (special bucket can be customized)
4、Filling accuracy :≤ +-0.1%
5、Filling machine power : 2.5KW
6、Air source : 0.5 MPa clean stable air supply
7、Weight :1600kg
8、The electric source : 50 hz AC 380V there-phase wireless system
9、Filling numbers :2
10、Production capacity : ≥ 70 barrels per hour
11、Working environment temperature :-10℃ -- 50℃
12、Working environment relative humidity :< 95%(without condensate )
13、Material interface : standard flange ,material inlet pressure is less than 0.3MPa
